TEST & MEASUREMENT PRODUCTS

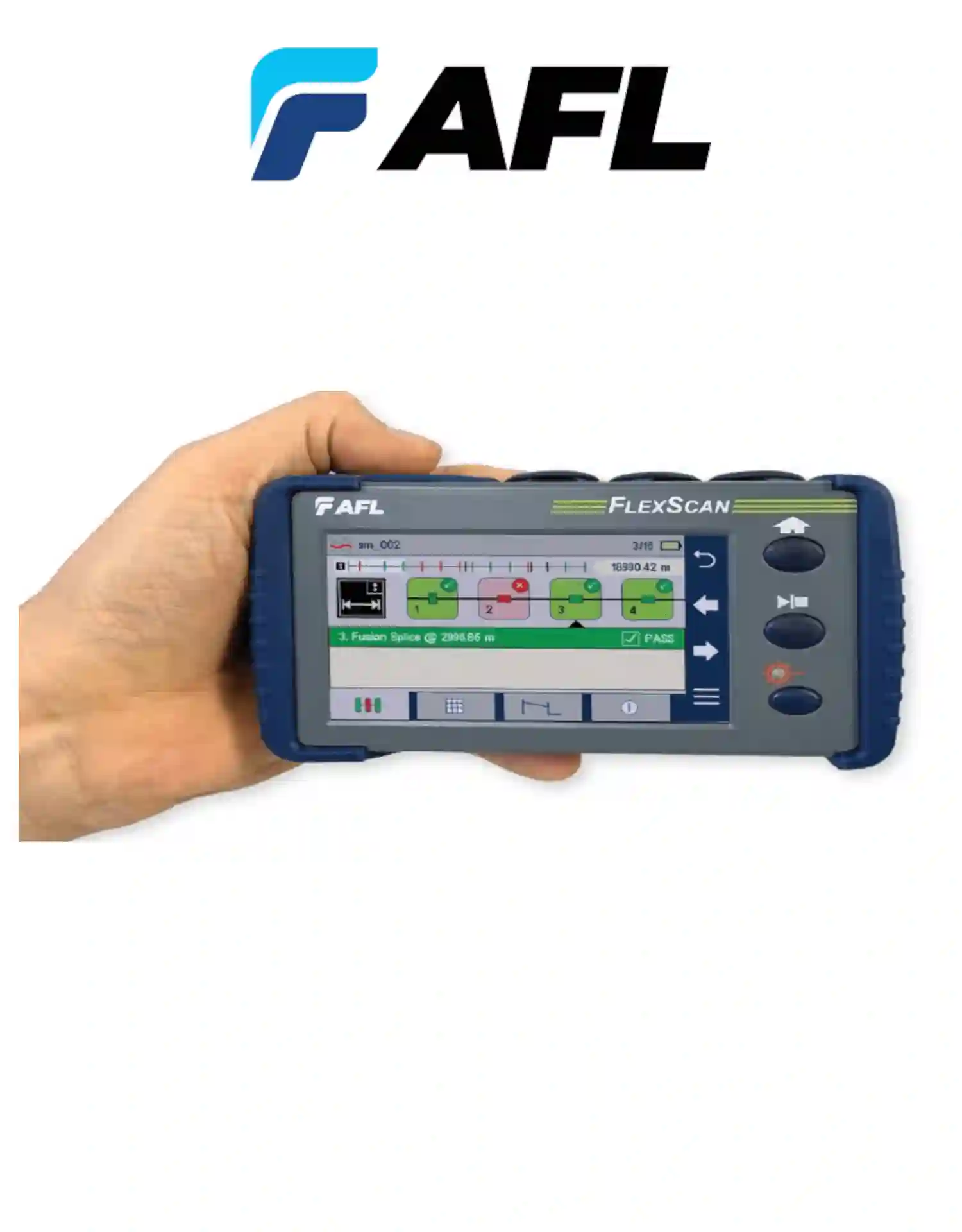

AFL’s FlexScan FS200-100
AFL’s FlexScan FS200 OTDR is an all-in-one solution for detecting, identifying, locating, and resolving single-mode optical network issues. It is designed for both novice and expert technicians working in a range of environments, from FTTH PON to point-to-point networks. It applies industry-standard or user-set pass/fail criteria and displays results using LinkMap color-coded icons that immediately show the health of the network. The FlexScan FS200 automates test setup, shortens test time, and simplifies results interpretation improving efficiency and reducing costs.
All-in-one test capability:
The FlexScan FS200 includes an integrated VFL, power meter, and light source. It can be easily paired to AFL’s award-winning FOCIS family of inspection scopes, ensuring technicians have everything they need to locate and quickly resolve optical network issues.
FS200-100 with two wavelength 1310/1550 version for more complete point to point network installation verification, as well as troubleshooting. By testing at both wavelengths, FlexScan can differentiate poor splices from macro-bends, as well as qualify the network for operation in both 1310 and 1550nm windows.
FS200-100

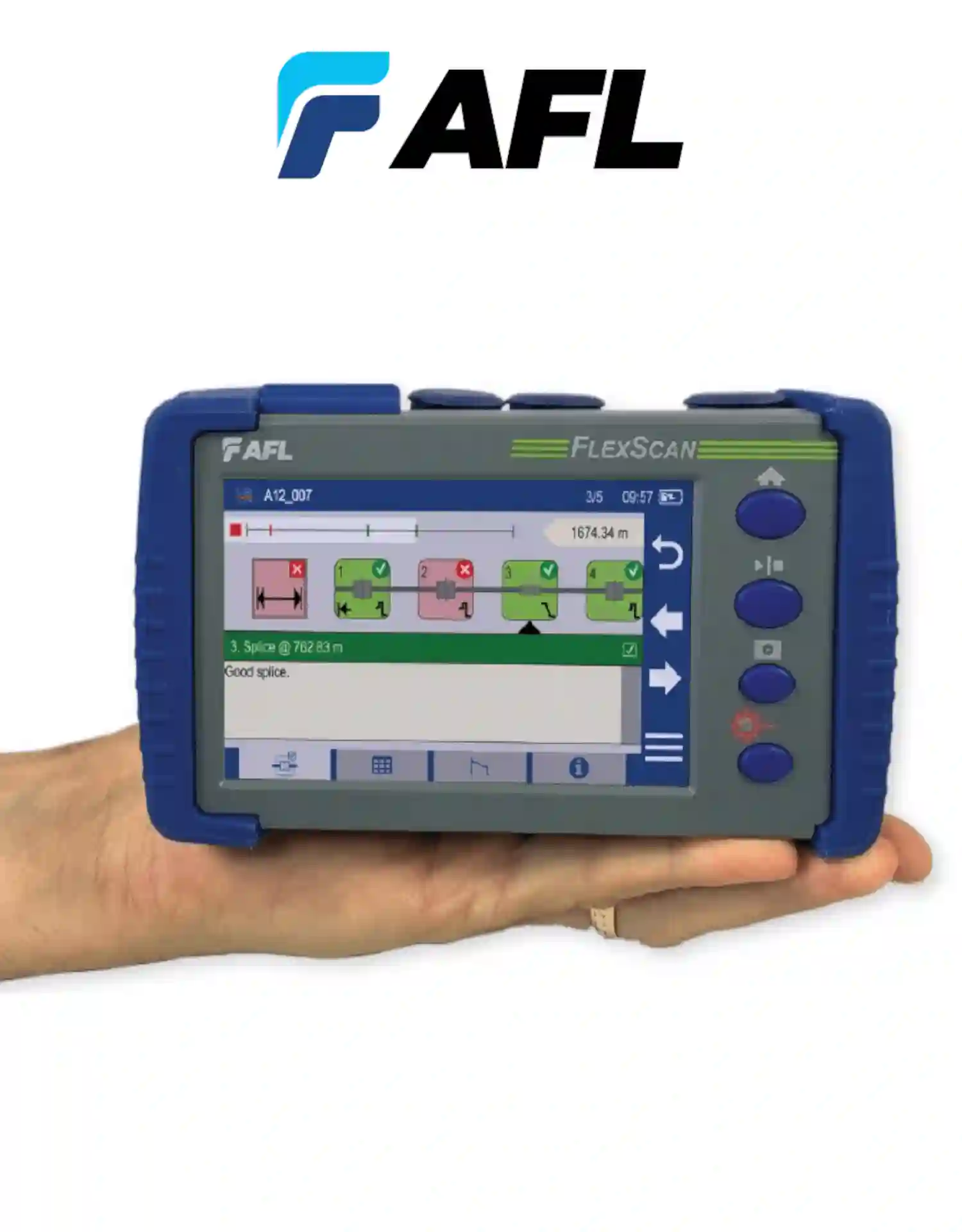

AFL’s FlexScan FS200-300
FS200-300
Applications:
  • Test MM and SM, point-to-point and PON
  • Detects closely spaced events without sacrificing range
  • LinkMap icons clearly identify event type & pass/fail status
  • Best-in-class 25 m PON dead zone
  • Print-to-PDF plus internal & external data storage
  • Integrated Source, Power Meter, Visual Fault Locator
  • Bluetooth & WiFi communications
  • Tether-free connector inspection with FOCIS Flex/Duel
  • Rugged, lightweight, hand-held for field use
  • 5” 800 x 480 color touchscreen LCD
Features:
  • OTDR and Insertion Loss test & reporting
  • Fast, accurate pt-to-pt & PON verification & troubleshooting
  • Locate faults exceeding industry or user pass/fail thresholds
  • Visually pinpoint location of macro-bends or breaks
Performance-packed:
With SmartAuto multi-pulse acquisition, 37 dB dynamic range and best-in-class dead zones, FlexScan Quad OTDRs test multimode and single-mode networks – including FTTH PONs and POLANs up to 1:64 split ratio – while still detecting and measuring events > 2 meters apart.

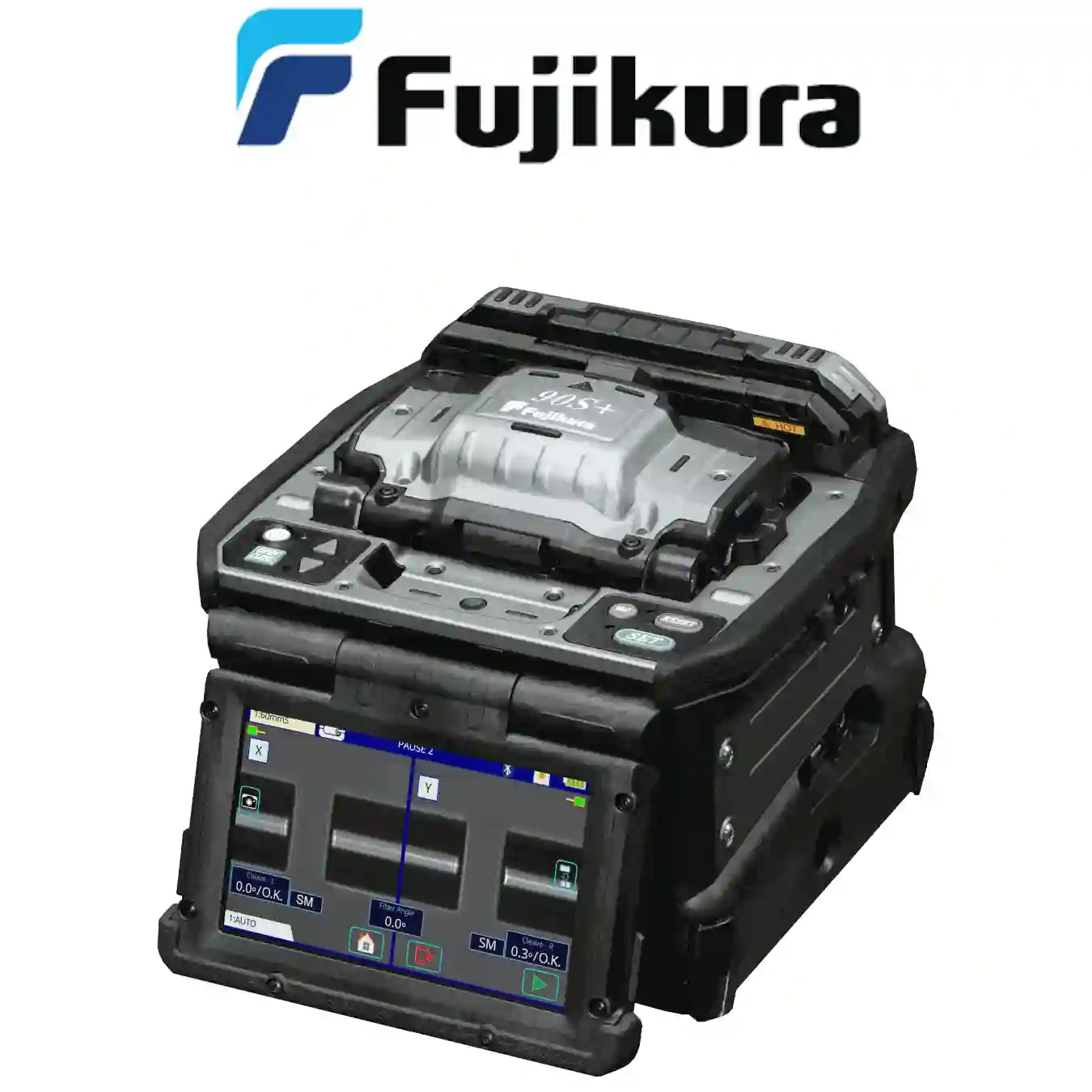

Fujikura Arc Fusion Splicer FSM-90S+
  • Core-to-Core alignment, Dual-axis observation system.
  • Cleaver tracking and upkeep with wireless communication.
  • Loose and tight buffer with same sheath clamp.
  • Lithium-ion battery with 300 splices/shrinks per charge.
  • Graphical User Interface with 5.0" Touchscreen.
  • PC software and 90S+ manual downloaded from splicer.
  • Multi-function transit case with integrated workstation.
  • Splicing Time 7 sec.
  • Heating Time 14 sec.
  • Minimal manual operation Splice in 4 steps.
  • Multi-functional carrying case with integrated work station.
  • Absolute robustness.
Fujikura Arc Fusion Splicer FSM-90S+

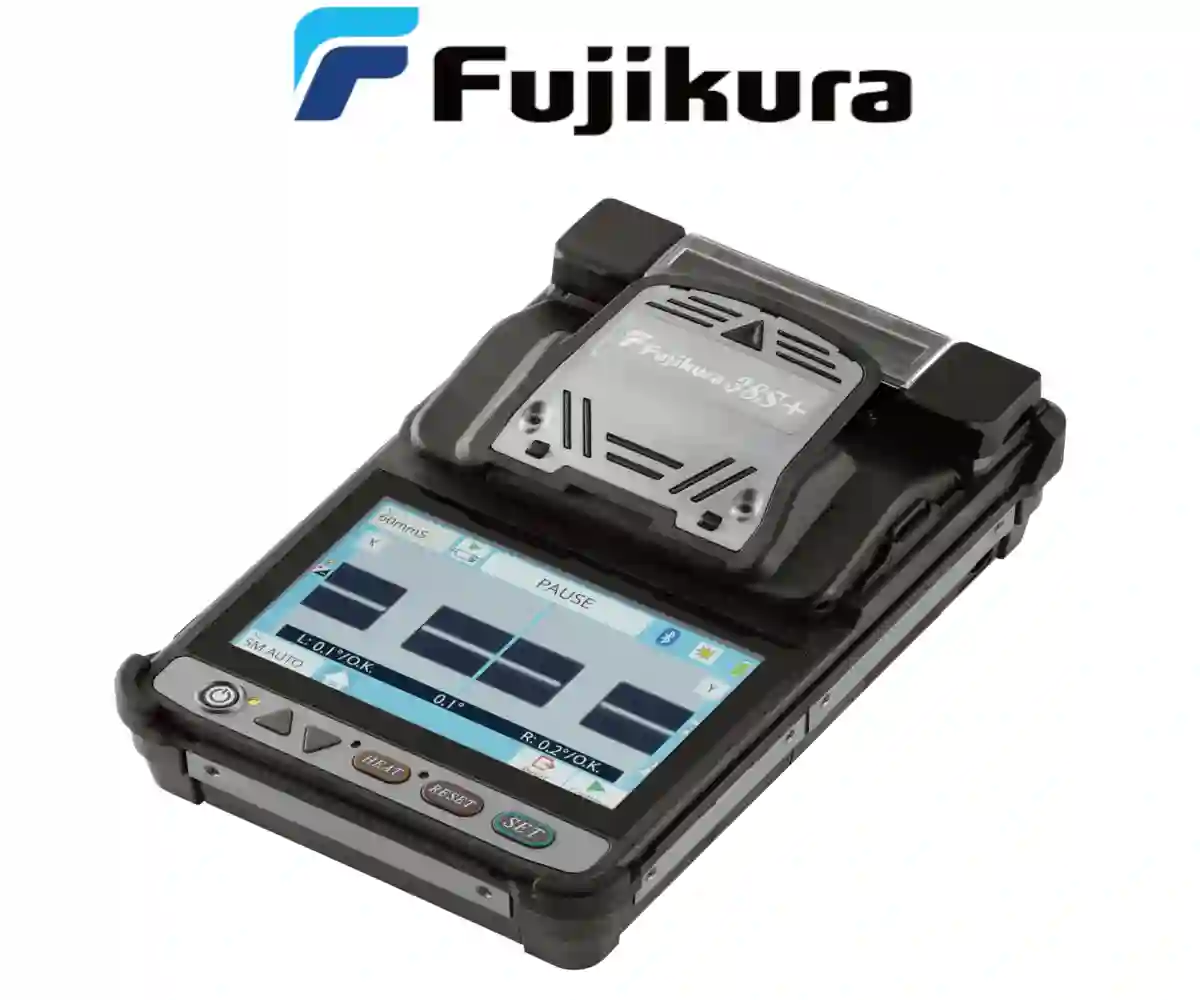

Fujikura Arc Fusion Splicer FSM-38S+
Fujikura Arc Fusion Splicer FSM-38S+
  • Active V-groove Alignment.
  • Excellent for FTTH.
  • Fast splicing time of 9 sec.
  • Tube-heating time of 24 sec.
  • Touch Panel with easy operation.
  • Fiber Optics Splicing Machine with 0.03 dB los.
  • Cleaver tracking and upkeep with wireless communication.
  • World’s smallest & Lightest.

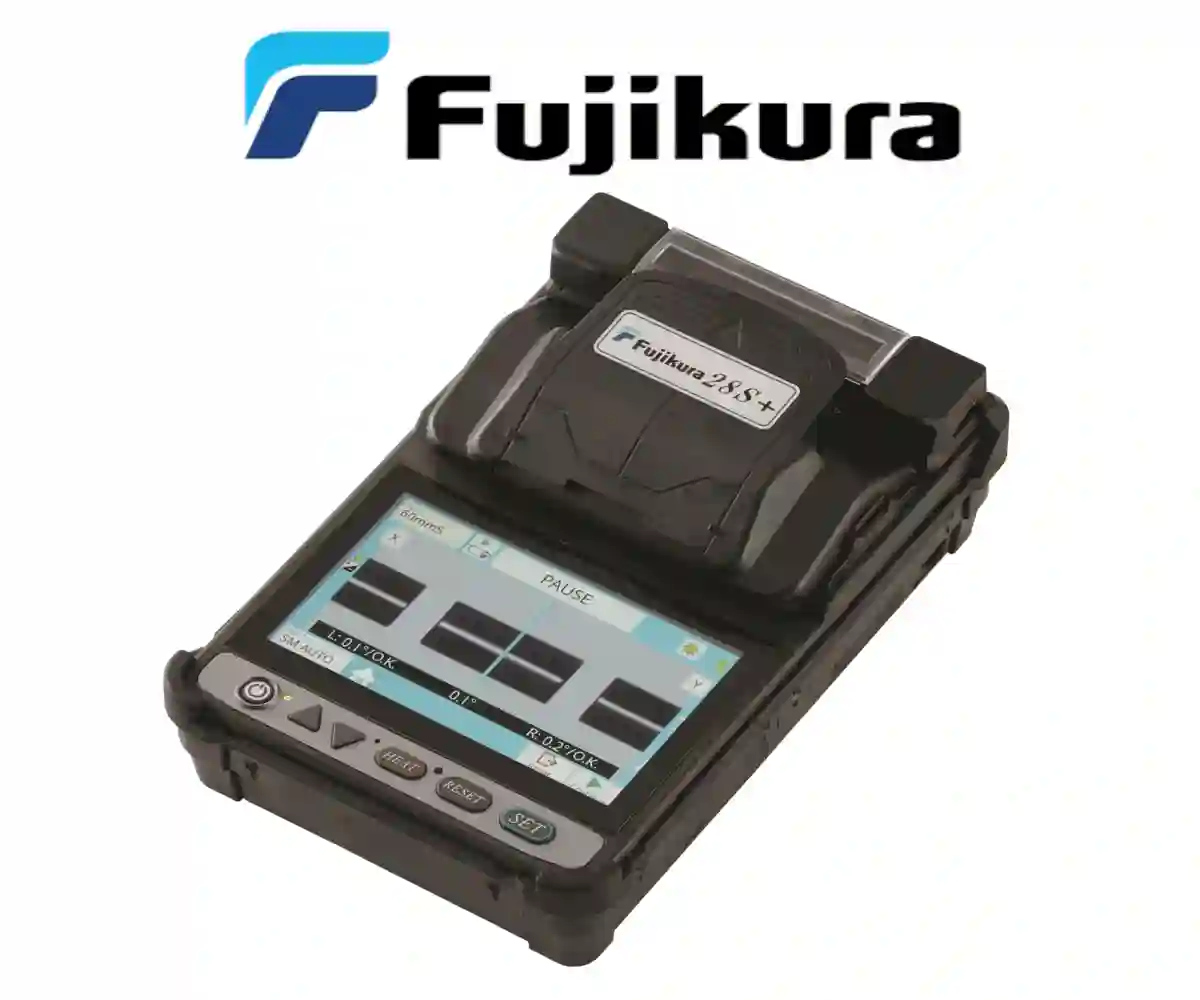

Fujikura Arc Fusion Splicer FSM-28S+
  • Excellent for FTTH.
  • World’s smallest & Lightest.
  • Active V-groove Splicer.
  • Fast splicing time 9 sec.
  • Tube-heating time of 24 sec.
  • Multi Functional Carrying Case.
  • Touch Panel with easy operation.
  • Fiber Optics Splicing Machine with 0.03 dB los.
Fujikura Arc Fusion Splicer FSM-28S+
